If you own a fiberglass boat, you've probably come to appreciate its durability, performance, and sleek look. However, even the sturdiest boats can experience wear and tear over time. One part particularly susceptible to damage is the transom—the backbone of your boat that supports the engine. Cracks, rot, or water damage mean replacement is necessary to maintain safety and performance.

Replacing a transom might seem like an intimidating project, but with the right preparation, tools, and guidance, it’s a manageable DIY task that can save you significant costs. This blog walks you through everything you need to know to replace a fiberglass boat transom—from understanding what a transom is to providing a step-by-step guide on replacing it yourself.

By the end of this guide, you’ll be ready to tackle this project and ensure your boat performs its best on the water.

What Is a Boat Transom and Why Does It Need Replacing?

The transom is the flat surface at the rear of the boat, often where the engine is mounted. It's a structural component that needs to be strong enough to support the motor while withstanding the stress and vibrations that come with high-speed boating.

Over time, transoms can deteriorate for several reasons:

• Water Damage: Poor sealing or cracks can allow water to seep in, leading to wood rot in older transoms (many transoms feature wood cores).

• Excessive Stress: Powerful engines and rough waters can double down on stress, potentially weakening the transom.

• Aging Materials: If your boat has stood the test of time, the materials might begin to degrade naturally, compromising safety.

Replacing a compromised transom is vital for proper engine support, structural integrity, and overall safety. Ignoring a damaged transom could lead to further issues, like engine failure or, in extreme cases, the transom detaching entirely.

Supplies You’ll Need

Before starting your transom replacement, it’s crucial to gather all the necessary tools and materials. Here’s what you’ll need for a successful project:

Tools and Equipment

• Grinder with fiberglass cutting blades

• Jigsaw or reciprocating saw

• Drill and screwdrivers

• Chisel and hammer

• Measuring tape

• Oscillating tool (optional)

• Pony clamps

• Ear protection

• Shop vacuum

Materials

• Marine plywood or composite material (for the new transom core)

• Structural adhesive

• Acetone (for cleaning the surfaces)

• Stainless steel screws or bolts

• Pencil or marker

• Resin and hardener

• Fiberglass mat, knit fabric or fiberglass cloth (with varied thicknesses)

• Mixing buckets and stir sticks

• Safety gear (gloves, mask, and safety goggles)

• Gelcoat or paint for finishing

Having everything ready before you start will save time and prevent unnecessary disruptions.

Step-by-Step Guide to Replacing a Fiberglass Boat Transom

Replacing a transom can be broken down into several key steps. While the process requires precision and patience, following these steps will make it much more manageable.

Step 1. Assess the Damage

Before you start cutting, assess the damage to confirm the transom indeed needs replacing. If the rot or cracks are minimal, you might be able to repair it rather than replace it.

However, if the transom has significant water intrusion or structural damage, replacement is your safest option. You can check the damage by checking for bowing in the bar at the top of the transom. You can also try tapping the transom with a hammer while listening for flat, hollow sections. Large stress cracks in the bolt holes is also an indicator of some rot.

Step 2. Remove the Engine and Hardware

Start by safely removing the outboard motor and any other hardware attached to the transom, like trim tabs, drain plugs, and ladder mounts. Be sure to label and store all parts systematically to make reassembly easier.

Step 3. Cut Away the Fiberglass Skin

Using a grinder or jigsaw, carefully cut through the fiberglass skin to expose the transom core. Follow the original outline of the transom when cutting, taking care not to damage adjacent parts of the boat. You may want to reuse some of the parts you remove so take care and keep in mind how you will put everything back together.

Pro Tip: Wear safety gear during this step. Cutting fiberglass creates dust that can irritate your skin and lungs.

Step 4. Remove the Core Material

Once the fiberglass skin is removed, use a chisel or saw to remove the old core material. This step may require some effort, especially if the core has been bonded with strong adhesive. Take your time and don’t get frustrated.

Be thorough in cleaning out all the old material to prepare the area for the new core. Sand and contour clean raw edges.

Step 5. Measure and Shape the New Core

Using the old core as a template (if possible). You can also use butcher paper of similar to create a template. Measure and cut the new transom core material to size. Marine plywood is a popular choice, but modern composite materials offer added durability and water resistance.

Double-check the fit of the replacement core before moving on to the next step. You don’t want it to be too tight.

Step 6. Bond the New Core

Coat the inside surface with resin, and place the new core into the transom cavity. Ensure it is firmly pressed into place, using clamps if necessary.

Use stainless steel screws or through-bolts to secure the core while the adhesive cures. Follow the manufacturer’s guidelines for curing times.

You may need more than one layer of core material depending on the needed thickness and strength. Once cured, use acetone to clean the area before adding fiberglass and resin.

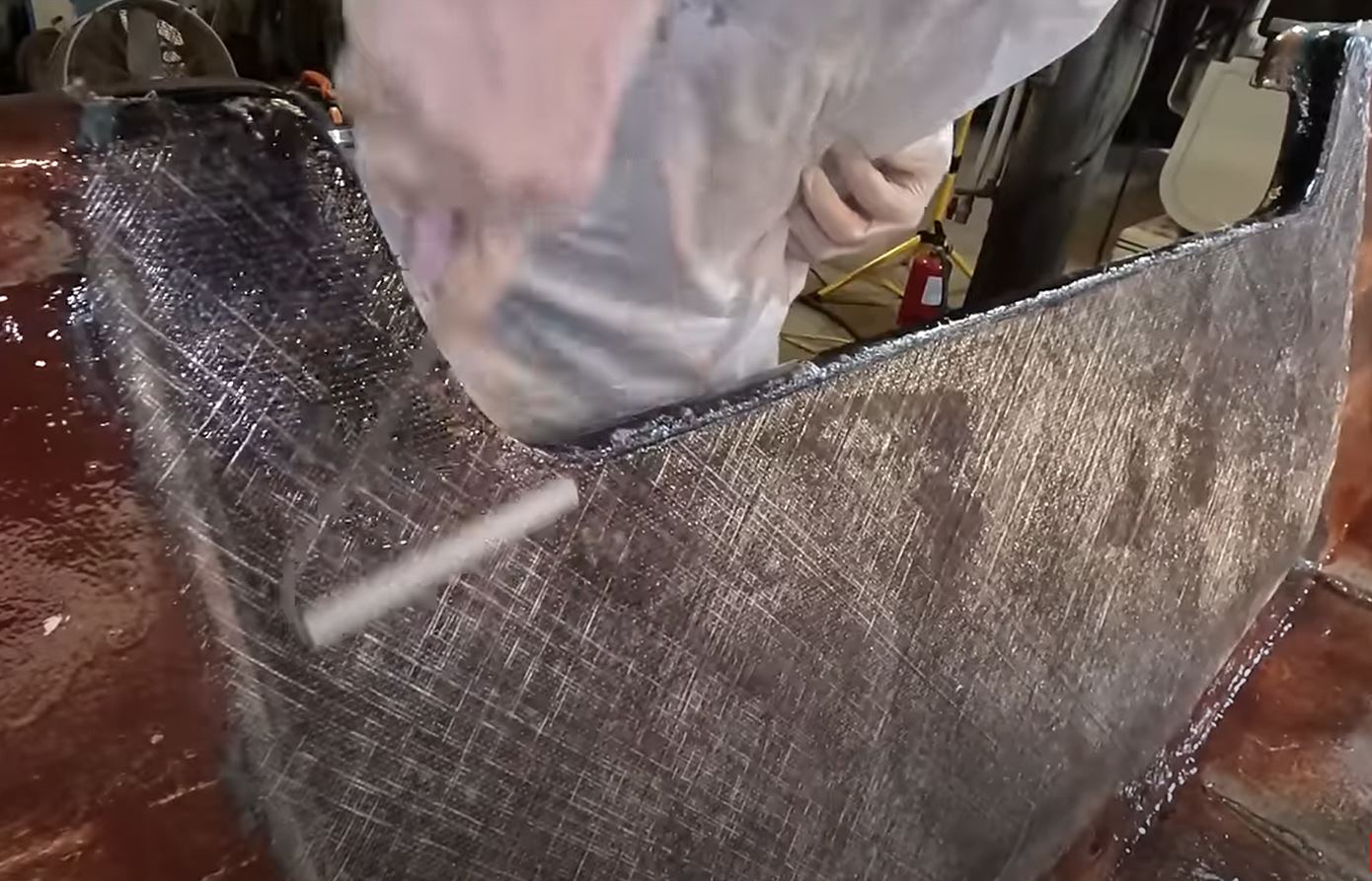

Step 7. Reinforce with Fiberglass

Cut the fiberglass to size before getting started on this part. Prep work is very important for a successful project. Also, tape up any bolt holes, etc. before adding resin to the opposite side of the transom.

You will want to coat the plywood or composite material with resin before lying down fiberglass. These materials, plywood especially, can soak up resin and leave your fiberglass with dry spots if this part is skipped. You can start with smaller sheets of fiberglass, building up to larger ones until the transom is securely reinforced.

Apply resin to each layer of fiberglass, letting it gel before moving onto to more layers. Ensure each layer is smoothly bonded to the one below. This strengthens the transom and protects it against future water intrusion.

Step 8. Finish with Gelcoat

After the fiberglass has cured, apply gelcoat to seal the transom and give it a smooth finish. If using several layers of gelcoat, use unwaxed gelcoat for each layer except the final layer. Unwaxed gelcoat cures tacky allowing subsequent layers to be added without the need for sanding in between. Use a waxed gelcoat for the final layer for a tack free finish.

Reinstall all the hardware and the outboard motor once fully cured. Ensure everything is securely fastened.

Maintain Your New Transom for Longevity

A well-installed transom can last for decades if properly maintained. Regularly inspect it for cracks or signs of water intrusion, and reseal any exposed edges to prevent future damage.

Additionally, ensure that your outboard motor is the appropriate size and weight for the boat to avoid putting unnecessary stress on the transom.

Keep Your Boat in Peak Condition

Replacing a fiberglass boat transom is no small task, but it’s an investment in your boat’s performance and your peace of mind. By following the steps outlined in this guide, you can confidently tackle the job, save on labor costs, and keep your boat in peak condition for many more seasons to come.

You can also check out Joe with FishBumpTV. He is doing a series that includes replacing a boat transom. Watch here- https://www.youtube.com/watch?v=QqsSMVpELOw

If you're unsure about handling the replacement yourself, consider enlisting the help of a professional boatyard to ensure the job is done correctly.
